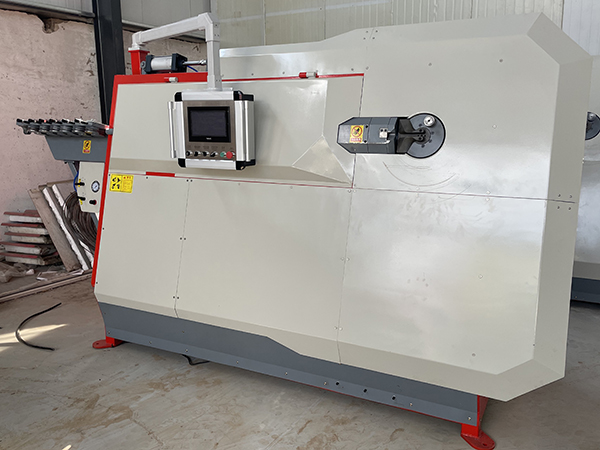

Cnc steel bar bending hoop machine

Quantity

XT-12 type

Processing diameter of a single steel bar

6—12mm

Double steel bar processing diameter

6—10mm

Range of side length of hoop reinforcement

(Min.----Max.)

50-----2000mm

Bending angle

0-----180°_+

Maximum traction speed

90-110m/min

Maximum bending speed

1100°/sec

Length accuracy

±2mm

Angle accuracy

±2°

Rated total power

37.5KW

Average power consumption

5kw/h

Production (average) 1 hour

200mm-200mm 1800 pieces

Total weight of the machine

About 1.8 tons

External dimensions

3400（L）x1000(W) x2200mm (H)

Traction motor

22KW

Bending motor

7.5KW

Cut off the motor

4.0KW

Air compressor

4.0KW

Electronic control system

1 set

Jiangsu Xinjie PLC has stable performance and simple operation.

Random tools and accessories

1 set

Free gift
