HGY13 Concrete Spreader/Concrete Placing Boom

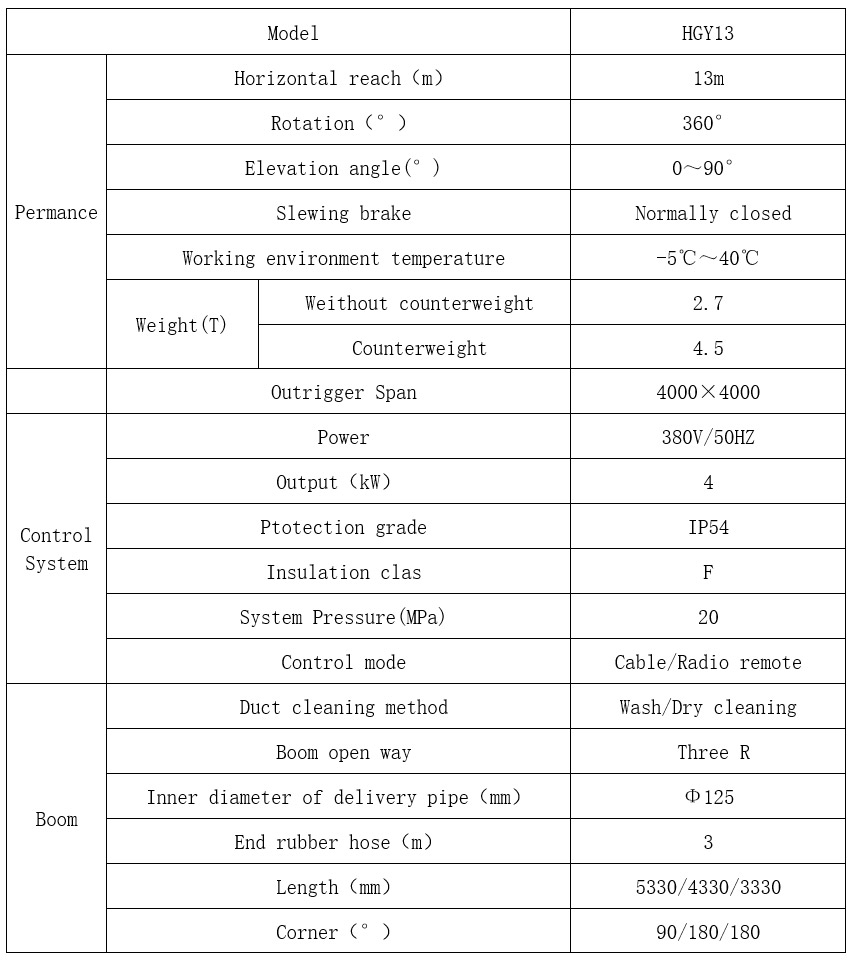

Model: HGY13

Theoretical conveying capacity:

Export pressure: 20Mpa

Aggregate particle size:

Cylinder diameter * stroke:

Motor power: 4kw

Inner diameter of conveying pipe: Φ125(mm)

External dimensions: 5330*4330*3330mm

Whole machine weight: 2700KG

Horizontal conveying distance: 13m

Vertical conveying distance:

The hydraulic Concrete Spreader machine is an advanced, intelligent extension of the traditional concrete placing machine, addressing the operational inconveniences, labor costs, and pouring efficiency associated with its predecessor.
1.Innovative Boom Technology: The boom features a unique "Z" shaped folding design, enabling a full 360° rotation while simultaneously executing actions for elevation, extension, and retraction of the boom.
2.Versatile Adaptability: Unaffected by the size or shape of the construction surface, it can accommodate various types of floors and complex construction sites.
3.Compact Structure: Easily hoisted and relocated, this machine does not require permanent installation. It can be effortlessly lifted to the desired pouring location using lifting equipment, making it suitable for placement on floors, platforms, or makeshift surfaces, thus offering significant flexibility and mobility.
4.User-Friendly Operation: Featuring a scientifically designed safety protection system, this cost-effective machine is primarily suited for high-rise and super high-rise buildings with elevator shafts.
