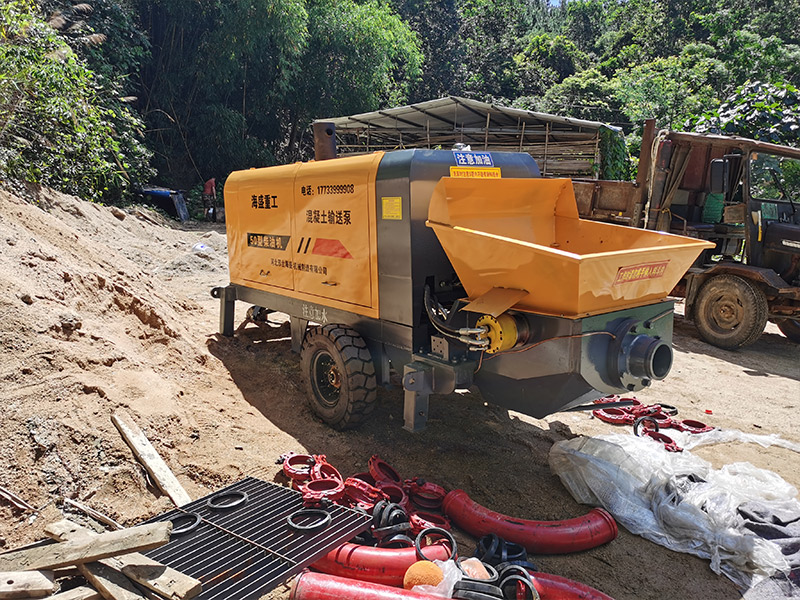

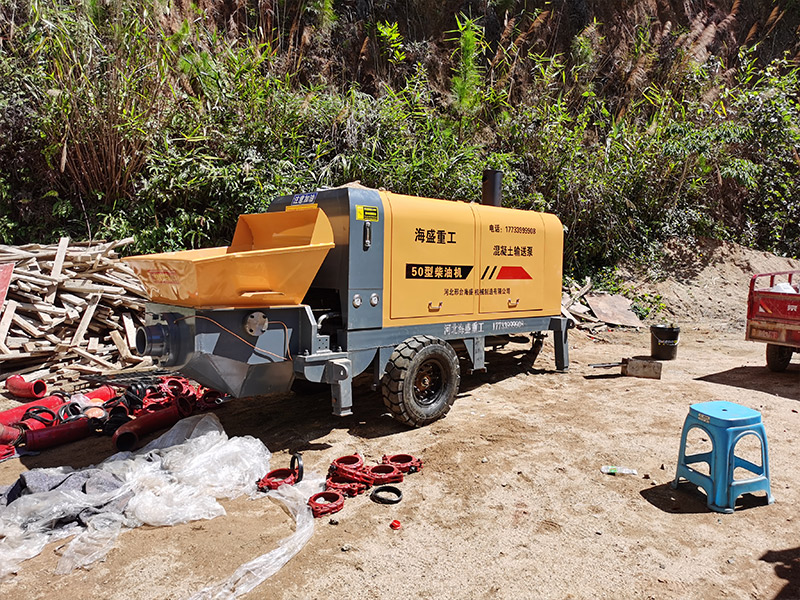

50 type concrete pouring pump
Model: YP-50
Theoretical conveying capacity: 25-35-40M3/h
Export pressure: 14Mpa
Aggregate particle size: ≦40(≦30)mm
Cylinder diameter * stroke: Φ200*1000mm
Motor power: 55kw
Inner diameter of conveying pipe: Φ125（Φ100）mm
External dimensions: 3950*1300*1550mm
Whole machine weight: 2600kg
Horizontal conveying distance: 100/150m
Vertical conveying distance: 60-90m
