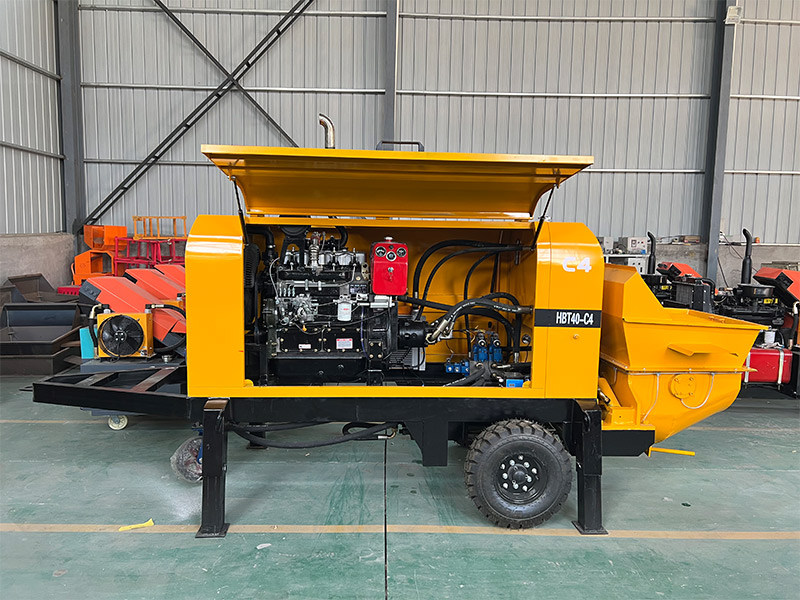

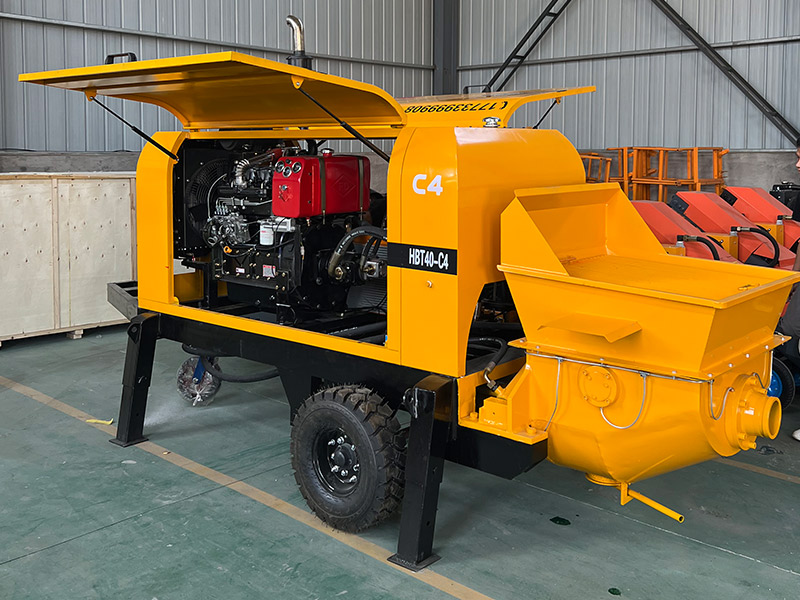

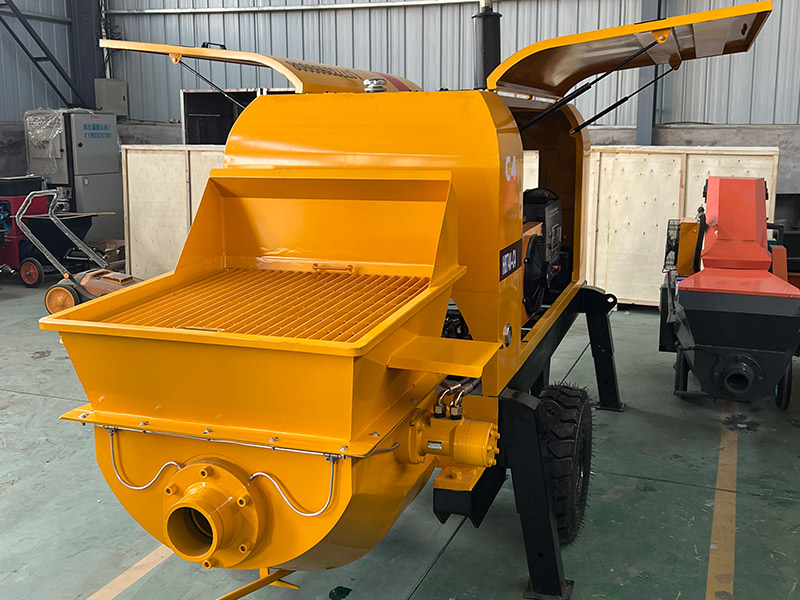

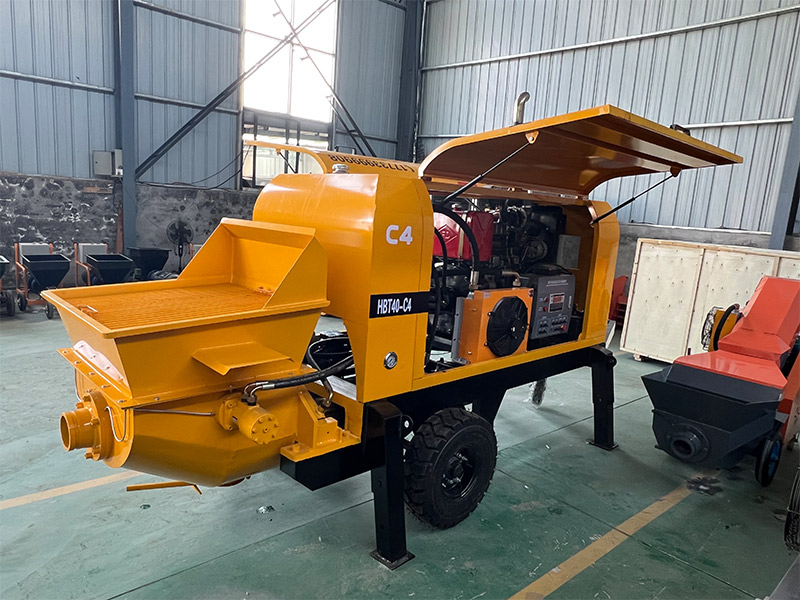

40 type concrete conveying pump
Model: YP-40
Theoretical conveying capacity: 30-40M3/h
Export pressure: 13Mpa
Aggregate particle size: ≦30(≦20)mm
Cylinder diameter * stroke: Φ160*1000mm
Motor power: 45kw
Inner diameter of conveying pipe: Φ100（Φ80）mm
External dimensions: 4100*1500*1550mm
Whole machine weight: 2200kg
Horizontal conveying distance: 350/400m
Vertical conveying distance: 180m
