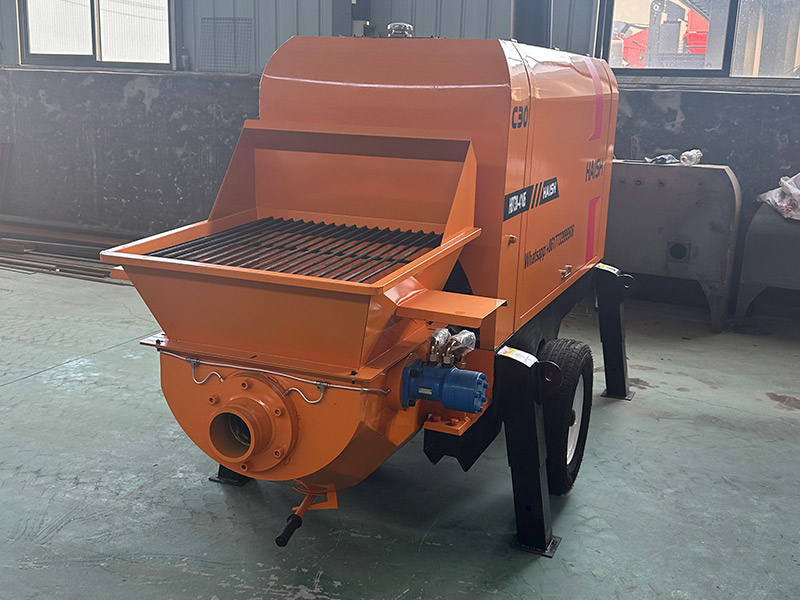

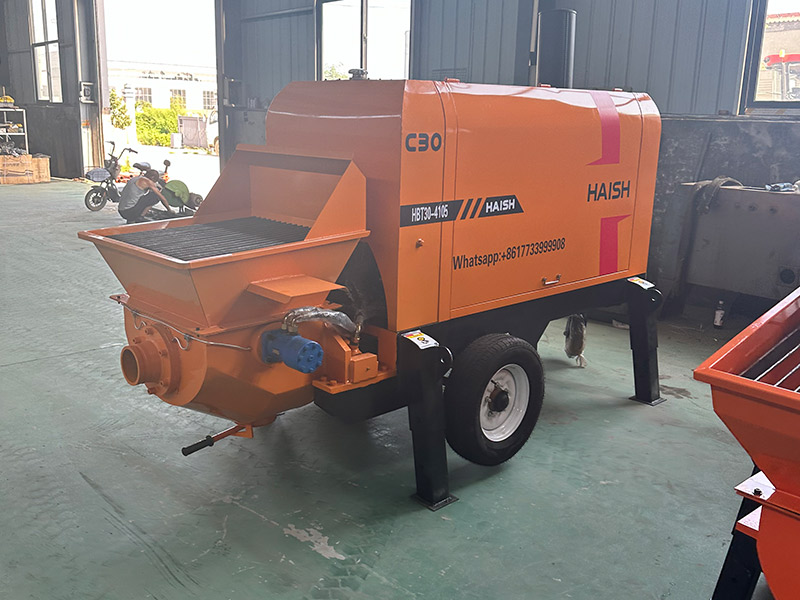

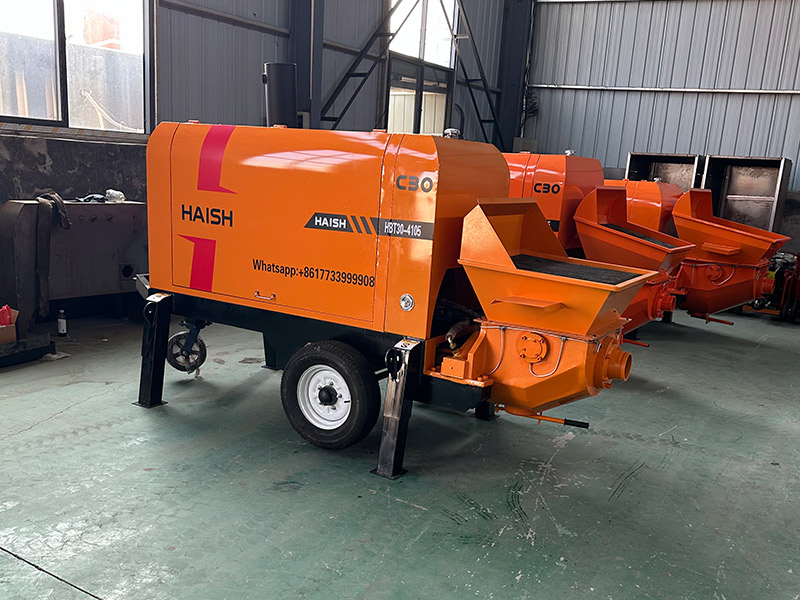

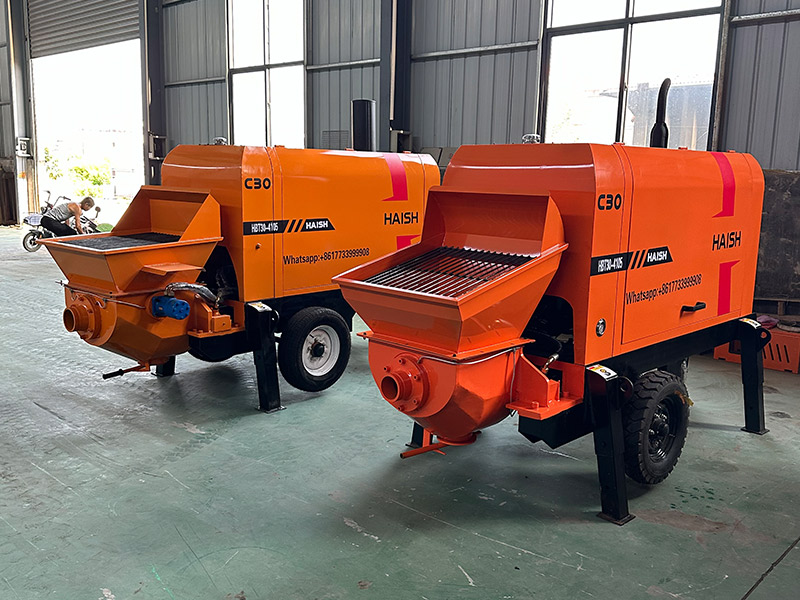

30 type small concrete pump
Model: YP-30
Theoretical conveying capacity: 30M3/h
Export pressure: 13Mpa
Aggregate particle size: ≦30(≦20)mm
Cylinder diameter * stroke: Φ120*800mm

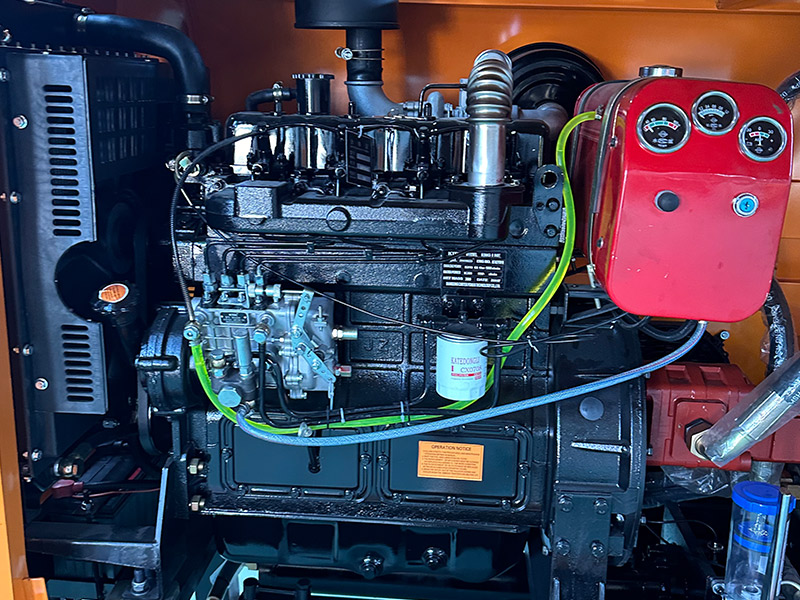

Motor power: 45/37kw
Inner diameter of conveying pipe: Φ100（Φ80）mm
External dimensions: 4000*1500*1550mm
Whole machine weight: 1800kg
Horizontal conveying distance: 250-300m
Vertical conveying distance: 160m
